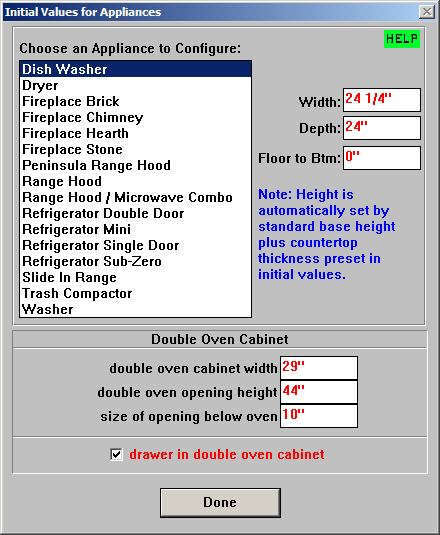

Appliances (Initial Values)
In this section, you enter the initial standard dimensions for appliances. Notice that in some cases you are entering the appliance widths (+) plus clearance and not the actual widths.
- Choose an Appliance to Configure: Click in the list box on the left and select the appliance you want to configure. The default dimensions will automatically appear on the right for that selected appliance.
- Width: Enter the actual width of the selected appliance. (Usually add 1/4 inch to the width for a 1/2 clearance on each side.)
- Depth: Enter the actual depth of the selected appliance.
- Floor to Btm: Enter the actual distance off the floor to the bottom of the selected appliance.
- Double Oven Cabinet Width: Enter the actual depth of the selected appliance.
- Double Oven Opening Height: Enter the Opening Height of the Double Oven. (The double oven brochure will usually give the desired width and height of opening.)
- Size of Opening Below Oven: Enter the size of the opening below the oven. If drawer in Oven Cabinet is selected, a drawer for pots and pans is placed in this opening.
- Drawer in Double Oven Cabinet: Check this box to place a drawer below the opening for a Double Oven Cabinet.
